8KN Cable Pulling Machine with 10-190mm Cable Diameter Capacity

Name: 8KN Cable Pulling Machine with 10-190mm Cable Diameter Capacity
Brand: Changshu Xinya Machinery Manufacturing Co., Ltd.
SKU: GSS-3Z
Price: 1,500.00 USD
Availability: InStock

브랜드 이름:	XINYA
모델 번호:	GSS-3Z
모크:	1
가격:	USD1000-USD2000
배달 시간:	7-15 일
지불 조건:	L/C, T/T, Western Union

상세 정보

제품 설명

상세 정보

원래 장소:

중국 장수

라인 당기기:

8KN

케이블 직경:

10-190mm

당기 속도:

6m/분 (사용자 정의 할 수 있음)

모터:

1.1kwx2pcs

대형 치수:

1100 × 580 × 500mm

무게:

135kgs

집게:

2.7kn 이하

포장 세부 사항:

목재 케이스

강조하다:

cable pulling machine 8KN capacity

cable turning conveyor winch puller

cable winch puller with conveyor

제품 설명

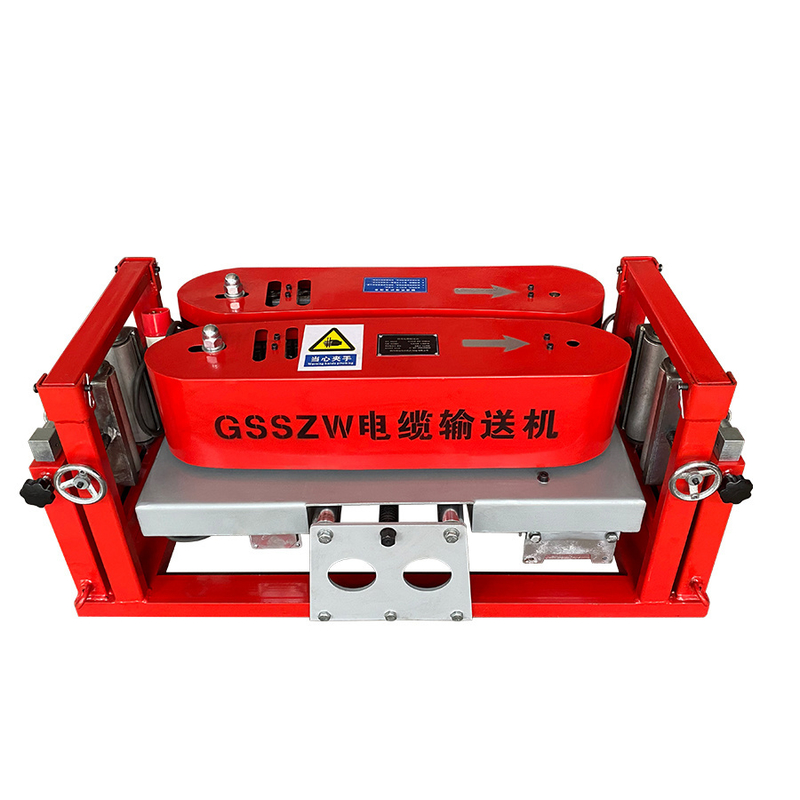

GSSZW Cable Pulling Machine Cable Turing Conveyor For Turning With 8KN Pulling Force

The GSSZW Cable Pulling Machine is a specialized mechanical equipment designed for power, communication, and optical cable laying operations. It features turning capability for complex terrain scenarios requiring directional changes during installation.

Key Features

Turning Capability: Special design guides cables smoothly along preset paths to prevent bending damage
Powerful Transmission: Provides continuous traction for long-distance, large-section cable laying
Flexible Operation: Can operate as a single unit or synchronize multiple machines via control box

Key Advantages

Enhanced Speed Design: Optimized drive system achieves 35 meters/min (adjustable), reducing construction time by 30%+
Rapid Deployment: Plug-and-play functionality for emergency engineering needs
Precision Control: Digital inverter enables stepless speed regulation with seamless mode switching
Multi-Machine Sync: Coordinated speed regulation maintains tension balance during long-distance laying
Advanced Conveying: High wear-resistant composite track with non-slip bump design for bidirectional operation

Product Overview

Double-track transmission system ensures stable traction for various cable specifications
Wear-resistant rubber conveyor belt/track with non-slip surface provides superior grip
Modular design supports multiple unit operation for ultra-long distance installations

Technical Specifications

Item	Value
Model	GSSZW
Power	Electric engine 1.1KWx2 380V 3-phase
Cable Diameter	10-190mm
Dimension	1100580500mm
Pulling Speed	6m/min (customizable)
Clamp	≤2.7KN
Pulling Force	8KN
Weight	135kg
