2×40kN Hydraulic Cable Tensioner with Dual-Groove Design for Overhead Line Stringing | Conductor Tension Machine

브랜드 이름:	XINYA
모델 번호:	SA-YZ2×40A
모크:	1세트
가격:	get latest price
배달 시간:	지불 후 60-90days
지불 조건:	l/c, t/t,

상세 정보

제품 설명

상세 정보

원래 장소:

중국 장쑤성

인증:

ISO

최대장력(kN):

2×40 또는 1×80

연속장력(Kn):

2×35 또는 1×70

최대 속도 (km/h):

엔진 전원 /속도 (kw /rpm):

51/2500

치수 (mm):

4500×2200×2800

무게(kg):

4850

제품:

수압 케이블 긴장기

기절:

1년

포장 세부 사항:

표준 수출 패키지

공급 능력:

달 당 1개 세트 / 세트

강조하다:

2×40kN Maximum Tension Hydraulic Cable Tensioner

Dual-Groove Design Conductor Tension Machine

Hydraulic Control Cable Puller Tensioner

제품 설명

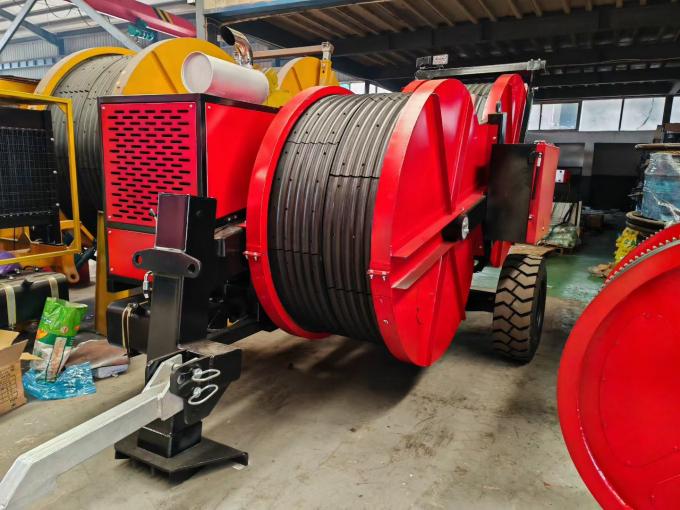

2*40kN Hydraulic Cable Tensioner for Overhead Line Stringing | Dual-Groove Conductor Tension Machine

The 2*40kN Hydraulic Cable Tensioner is a high-performance tension control device designed for overhead transmission line construction and conductor stringing projects. With two independent tensioning wheels providing a combined tension force of 40kN per groove, this machine ensures smooth, stable, and safe installation of ACSR, AAAC, OPGW, and ground wires. It is widely used in 110kV-220kV transmission lines and medium-span conductor stringing operations.

What Is a Hydraulic Cable Tensioner?

A hydraulic cable tensioner provides constant and controlled tension during conductor or OPGW installation. Its purpose is to prevent conductor sagging, maintain uniform tension, protect conductors from damage, and improve overall stringing safety and efficiency. The 2*40kN model is ideal for dual-conductor or single large-size conductor stringing.

Key Features

Dual Tensioning Grooves (2 * 40kN): Ensures stable conductor deployment, suitable for bundled conductors or single large-size conductors
Automatic Hydraulic Control: Constant tension regulation, smooth speed adjustment, overload automatic protection
Wear-Resistant Bullwheel Liners: Aluminum or MC nylon lining for maximum protection of conductor surface
Real-Time Digital Monitoring: Displays tension, speed, and conductor payout length with optional data recorder
Robust Build for Field Work: Reliable performance in mountains, long spans, river crossings, designed for long hours of continuous operation

Advantages

Stable & consistent tension, ideal for high-precision stringing
Highly durable hydraulic system with low maintenance cost
Reduced conductor wear thanks to optimized groove design
Designed for high-voltage line contractors & EPC projects
Supports single or bundled conductor operations

Applications

The 2*40kN hydraulic tensioner is commonly used for overhead transmission line construction (110kV-220kV), ACSR/AAAC conductor tension stringing, OPGW and ground wire installation, mountain, river crossing, and medium-span projects, and dual-conductor operations.

Main Components

Engine: Deutz air-cooled diesel engine
Main pump and main motor: Rexroth (BOSCH)
Reducer: R.R (Italian)
Main hydraulic valve: Rexroth (BOSCH)
Radiator: AKG
Hydraulic instrument
Optional Chinese air-cooled engine model: SA-YZ2*40B
Optional mobile control consoles for simultaneous operation of two machines (Order number: 07193)

Technical Specifications

Specification	Value
Maximum Tension	240 kN or 180 kN
Continuous Tension	235 kN or 170 kN
Maximum Speed	5 km/h
Bullwheel Bottom of Groove Diameter	Φ1500 mm
Number of Grooves	2*5
Maximum Pullback	240 kN or 180 kN
Maximum Speedback	2*1.2 km/h
Maximum Suitable Conductor Diameter	Φ40 mm
Engine Power / Speed	51 kW / 2500 rpm
Dimensions	4500 * 2200 * 2800 mm
Weight	4850 kg

Frequently Asked Questions

What conductor sizes can the 2*40kN tensioner handle?

Suitable for ACSR/AAAC conductors, OPGW, and ground wires used in 110-220 kV lines.

Does this machine support constant tension?

Yes. The hydraulic system provides fully automatic constant-tension control.

Can this machine be used for bundled conductors?

Yes, the dual-groove design is ideal for single or double-bundle conductor stringing.

Is data recording available?

Optional digital recorder for project documentation.

What is the typical rope used?

Usually anti-twist steel wire rope.
